Uline Pallet Truck - Short Fork, 42 x 27"

Dependable pallet truck at an affordable price.
  • Handles pallets up to 42" with ease.
  • 3-position hand control - Raise, lower, neutral.
  • 3" lowered and 7.5" raised height.
  • 7" polyurethane steering wheels. 3" polyurethane fork wheels.
  • 210° steering arc.
  • View video.

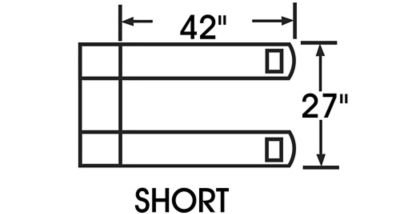

    Pallet Truck Dimensions
MODEL
NO.
DESCRIPTION FORK SIZE
L x W
LOAD
CAPACITY
WT.
(LBS.)
PRICE EACH IN STOCK
SHIPS TODAY
1 3+
H-4803 Short 42 x 27" 5,500 lbs. 145 $469 $439  ADD
SHIPS ASSEMBLED VIA MOTOR FREIGHT
DIMENSIONS:
  • Overall: 58 x 47.8" (L x H)
  • Steering Wheel (Width): 2"
  • Forks:
    • Actual: 43 5/16 x 27"
    • Width: 6 1/4"
    • Thickness: 1 3/4"
    • Distance Between Forks (Inside): 14 1/4"
TEMPERATURE:
  • -7° to 35° C (20° - 95° F)
  • Hydraulic fluid may not function properly below -5° C (23° F).
FEATURES:
  • Non-marking wheels
INCLUDES:
  • Extra 3" Rod to lock hydraulics to change pump or handle.
SPECIFICATIONSMETRICIMPERIAL
FORK LENGTH x WIDTH107 x 69 cm42 x 27"
LOAD CAPACITY2495 Kg5,500 lbs.
WEIGHT66 Kg145 lbs.
ACCESSORIES:PARTS:
  • H-1043-B113 Pull Pole Assembly for Uline Pallet Truck
  • H-1043-B28 Roll Ring for Uline Pallet Trucks
  • H-1043-B31 Fork Wheel Frame
  • H-1043-B8 Polyurethane Steering Wheel for Uline Pallet Truck - 7"
  • H-1043-SHC Pump Handle for Uline Pallet Truck
  • H-1043-WHKIT Uline Pallet Truck Polyurethane Fork Wheel - 3"
  • H-1043PUMP Pump Assembly for Uline Pallet Truck
  • H-1483-B29 Shaft for Uline Industrial Pallet Truck
  • H-5631 1 3/8" Spring Pin for Uline Pallet Truck
  • H-5632 Uline Pallet Truck 1 1/4" Spring Pin
  • H-5634 Polypropylene Entry Wheel Assembly for Uline Pallet Truck - 1 1/2"
  • H-6017 Steering Wheel Hardware for Uline Pallet Truck
