Uline Pallet Truck - Extra Long Fork, 96 x 27"

Dependable pallet truck at an affordable price.
  • Reaches under longer specialty pallets.
  • 3-position hand control - Raise, lower, neutral.
  • 3" lowered and 7.5" raised height.
  • 7" polyurethane steering wheels. 3" polyurethane fork wheels.
  • 210° steering arc.
  • Use with Pallet Truck Stop.
  • View video.

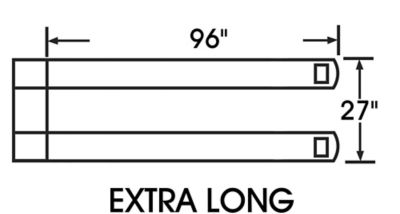

    Pallet Truck Dimensions
MODEL
NO.
DESCRIPTION FORK SIZE
L x W
LOAD
CAPACITY
WT.
(LBS.)
PRICE EACH ADD TO
CART
1 3+
H-4123 Extra Long 96 x 27" 5,500 lbs. 332 $1,186 $1,134 ADD
SHIPS ASSEMBLED VIA MOTOR FREIGHT
DIMENSIONS:
  • Total Unit Length: 114"
  • Overall Height: 47 1/2"
  • Forks:
    • Actual Size: 98 1/4 x 27"
    • Width: 6 1/4"
    • Thickness: 2 1/8"
    • Distance Between Forks (Inside): 14 3/8"

TEMPERATURE:
  • Hydraulic fluid may not function properly below -5 C (23F).

FEATURES:
  • Non-marking wheels


SPECIFICATIONSMETRICIMPERIAL
FORK LENGTH x WIDTH244 x 69 cm96 x 27"
LOAD CAPACITY2495 Kg5,500 lbs.
WEIGHT125 Kg276 lbs.
PARTS:
  • H-1043-B8 Uline Pallet Truck Polyurethane Steering Wheel - 7"
  • H-1043-WHKIT Uline Pallet Truck Polyurethane Fork Wheel - 3"
  • H-1043PUMP Uline Pallet Truck Pump Assembly
Unable to find what you're looking for? Please contact us.
