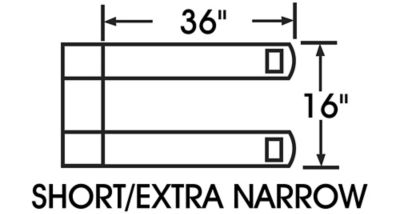

Uline Pallet Truck - Short/Extra Narrow Fork, 36 x 16"

Dependable pallet truck at an affordable price.

Fits into narrow pallets.
Handles pallets up to 36" with ease.
3-position hand control - Raise, lower, neutral.
3" lowered and 7.5" raised height.
7" polyurethane steering wheels. 2 3/4" polyurethane fork wheels.
210° steering arc.
View video.

MODEL NO.	DESCRIPTION	FORK SIZE L x W	LOAD CAPACITY	WT. (LBS.)	PRICE EACH		IN STOCK SHIPS TODAY
					1	3+
H-4122	Short/Extra Narrow	36 x 16"	4,400 lbs.	127	$820	$775	ADD

SHIPS ASSEMBLED VIA MOTOR FREIGHT

DIMENSIONS:

Overall: 51 x 47 1/2" (L x H)
Steering Wheel (Width): 2"
Forks:
- Actual: 35 1/2 x 16"
- Width: 5 7/8"
- Thickness: 1 7/8"
- Distance Between Forks (Inside): 4 1/8"

TEMPERATURE:

-7° to 35° C (20° - 95° F)
Hydraulic fluid may not function properly below -5° C (23° F).

COMPATIBILITY:

Not compatible with standard 48 x 40 pallets.

INCLUDES:

Extra 3" Rod to lock hydraulics to change pump or handle.

REPLACEMENT WHEELS:

Big (Steering) Wheel: H-4122-STEER

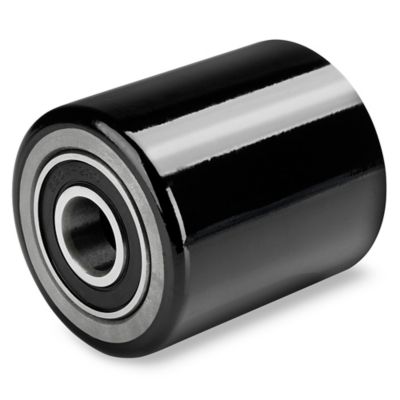

Fork (Load) Wheel: H-4122-WHEEL

VIDEO:

Manual Pallet Truck Troubleshooting

Ships Via Motor Freight

Availability: In Stock

Unit Weight: 127 lbs.\58 kg

SPECIFICATIONS	METRIC	IMPERIAL
FORK LENGTH x WIDTH	91 x 41 cm	36 x 16"
LOAD CAPACITY	1996 Kg	4,400 lbs.
WEIGHT	58 Kg	127 lbs.

Ships Via Motor Freight

Availability: In Stock

Unit Weight: 127 lbs.\58 kg

ACCESSORIES:

H-2456 Pallet Truck Stop

PARTS:

H-1043-B113 Pull Pole Assembly for Uline Pallet Truck
H-1043-B117 Pump Spring Pin for Uline Pallet Trucks
H-1043-B118 Shaft for Pallet Truck
H-1043-B9 Wheel Bearing for Uline Pallet Truck
H-1043-SHC Pump Handle for Uline Pallet Truck
H-1043PUMP Pump Assembly for Uline Pallet Truck
H-1365-B4 Bearing for Uline Low Profile Pallet Truck Pumps
H-1366-B101 Blade Spring for Uline Pallet Truck

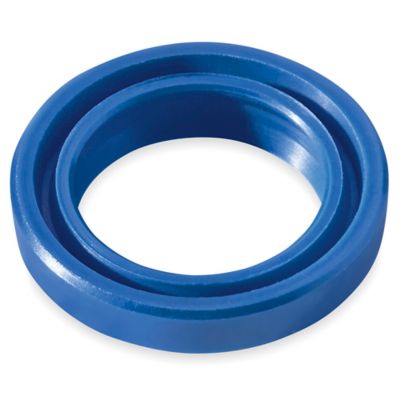

H-1483-B150 Dust Ring for Uline Pallet Trucks
H-2721-B102 Spring Pin for Pallet Truck
H-4182 Pump Seal Kit for Uline Pallet Truck
H-5631 1 3/8" Spring Pin for Uline Pallet Truck
H-6017 Steering Wheel Hardware for Uline Pallet Truck

Unable to find what you're looking for? Please contact us.
