Uline Pallet Truck - Standard Fork, 48 x 27"

Dependable pallet truck at an affordable price.
  • 3-position hand control - Raise, lower, neutral.
  • 3" lowered and 7.5" raised height.
  • 7" polyurethane steering wheels. 3" polyurethane fork wheels.
  • 210° steering arc.
  • Use with Pallet Truck Stop.
  • View video.

    Pallet Truck
MODEL
NO.
DESCRIPTION FORK SIZE
L x W
LOAD
CAPACITY
WT.
(LBS.)
PRICE EACH ADD TO
CART
1 3+
H-1043 Standard 48 x 27" 5,500 lbs. 153 $386 $360 ADD
SHIPS ASSEMBLED VIA MOTOR FREIGHT

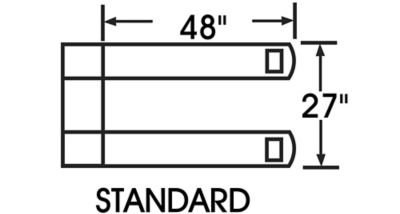

DIMENSIONS:
  • Total Unit Length: 61"
  • Overall Height: 47 1/2"
  • Forks:
    • Actual Size: 48 x 26 1/2"
    • Width: 6 1/4"
    • Thickness: 1 3/4"
    • Distance Between Forks (Inside): 14 1/4"

TEMPERATURE:
  • Hydraulic fluid may not function properly below -5 C (23F).

FEATURES:
  • Non-marking wheels.


SPECIFICATIONSMETRICIMPERIAL
FORK LENGTH x WIDTH122 x 69 cm48 x 27"
LOAD CAPACITY2495 Kg5,500 lbs.
WEIGHT69 Kg153 lbs.
PARTS:
  • H-1043-B28 Uline Pallet Trucks Roll Ring
  • H-1043-B31 Fork Wheel Frame
  • H-1043-B8 Uline Pallet Truck Polyurethane Steering Wheel - 7"
  • H-1043-SHC Uline Pallet Truck Handle Assembly
  • H-1043-WHKIT Uline Pallet Truck Polyurethane Fork Wheel - 3"
  • H-1043PUMP Uline Pallet Truck Pump Assembly
  • H-1483-B29 Uline Industrial Pallet Truck Shaft
  • H-5631 1 3/8" Spring Pin for Uline Pallet Truck
  • H-5632 Uline Pallet Truck 1 1/4" Spring Pin
  • H-5634 Polypropylene Entry Wheel Assembly Uline Pallet Truck - 1 1/2"
  • H-6017 Uline Pallet Truck Steering Wheel Hardware
Unable to find what you're looking for? Please contact us.
