Ratchet Beam Trailer Jack - 100,000 lb Capacity

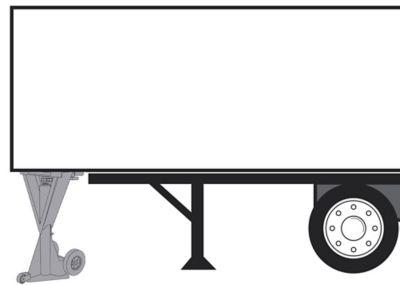

Safe, secure support for trailers when loading and unloading.
  • High visibility yellow.
  • Rugged welded steel.
  • Supporting beam safely distributes load. Reversible ratchet adjustment.
10" SOLID RUBBER WHEELS
MODEL
NO.
STATIC
CAPACITY (LBS.)
LIFT
CAPACITY (LBS.)
ADJUSTABLE
HEIGHT
WT.
(LBS.)
PRICE EACH IN STOCK
SHIPS TODAY
1 4+
H-2732 100,000 40,000 39 1/2-51" 172 $658 $632  ADD
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Overall: 17 5/8 x 25 15/16" (W x L)
  • Supporting Beam: 6 x 24" (W x L)
  • Steel Wheel (Front): 4"
SPECIFICATIONS:
  • Meets OSHA regulations when used with wheel chocks.
SPECIFICATIONSMETRICIMPERIAL
STATIC CAPACITY45350 Kg100,000 lbs.
LIFT CAPACITY18144 Kg40,000 lbs.
ADJUSTABLE HEIGHT100 - 130 cm39 1/2-51"
WEIGHT78 Kg172 lbs.
PARTS:
  • H-8084 Axle for Trailer Jack
  • H-8086 Flat Washer for Trailer Jacks
  • H-8088 Cotter Pin for Trailer Jacks
