Heavy Duty Steel Dumping Hopper - 3 Cubic Yard

Made for really tough jobs. Safely transport and dump heavy loads.
  • All-welded steel construction.

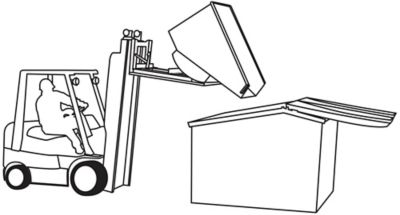

  • Simply pull cable from the seat of your forklift to release hopper.
  • Safety chain secures hopper to forklift.
  • 6,000 lb. capacity.
  • 6" steel caster option provides mobility.
  • Optional Lids provide clean appearance.

    Dumping Hopper
MODEL
NO.
DESCRIPTION SUGGESTED
USE
CUBIC
YARD
CAP.
(LBS.)
FORK POCKET
CENTERS
OVERALL DIM.
L x W x H
 WT.
(LBS)
PRICE EACH ADD TO
CART
1 2+
H-2642 Heavy
Duty
Concrete,
Metal
3 6,000 28" W 69 x 82 x 51" 991 $2,601 $2,547 ADD
DROP SHIPS IN 6 DAYS FROM IN
DIMENSIONS:
  • Actual (Overall): 68 5/8 x 81 3/4 x 51 13/16" (L x W x H)
  • Inside:
    • Height: 41 3/4"
    • Length at Opening: 64 1/4"
  • Bottom (Inside): 77 15/16 x 20 13/16" (W x L)
  • Front/Dumping Chute: 77 15/16 x 51 1/8" (W x L)
  • Fork Pockets: 7 1/2 x 2 1/2" (W x H)
  • Safety Chain: 3'
  • Steel Cable: 4' 6"

SIZE:
  • Will not fit through a standard doorway (32" clearance).

MATERIAL:
  • Body: 8 gauge
  • Base: 3 gauge (1/4")

TEMPERATURE:
  • -29 to 57 C (-20 to 135 F)

COMPATIBILITY:
  • Not compatible with pallet trucks.

FEATURES:
  • 70 degree dumping angle

CAPACITY:
  • 3 Cubic Yard=
    • 605 gallons
    • 81 Cubic feet
    • 65.1 Bushels

USAGE:
  • Hopper does not have a bumper release.
  • Not leakproof.

LEAD TIME:
  • Orders larger than 2 units have extended lead times.

COMPATIBLE CASTERS:
6" PolyolefinH-3322
6" RubberH-3326
6" SteelH-2112
8" PolyolefinH-3323
8" RubberH-3327
10" PneumaticH-3329


SPECIFICATIONSMETRICIMPERIAL
VOLUME2.3 cu. M3 cu. yd.
CAPACITY2722 Kg6,000 lbs.
FORK POCKET CENTERS71 cm W28" W
OVERALL LENGTH x WIDTH x HEIGHT175 x 208 x 130 cm69 x 82 x 51"
WEIGHT450 Kg991 lbs.
